RF Series

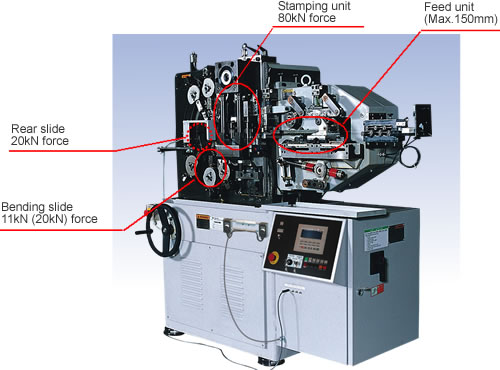

PROFORMA RF-20

Compact model for small and high precision parts.

Work sample



PROFORMA RF-60

Medium size and widely used in many different industries

Work sample



PROFORMA RF-80

Larger model for up-scale processing.

Work sample



PROFORMA RF-150

Largest model for large wire and thick material

Work sample

RF Series


Item RF-20 RF-60 RF-80 RF-150
Material Strip material
(Max.mm)		 50W×1.5t 60W×1.6t 80W×1.6t 100W×2.5t
Wire material
(Max.mm)		 φ3 φ6 φ8 φ10
Feed unit Feed length
(Max.mm)		 150 220 360 500
Feed force
(kN)		 0.5 0.5 0.7 0.7
Vertical adjustment range
(mm)		 ±35 ±35 ±35 ±70
Feeding accuracy
(mm)		 0.01 0.01 0.01 0.01
Stamping unit Stamping force
(kN)		 80 250 350 600
Ram stroke
(mm)		 10 15 18 30
Die height
(mm)		 155 230 335.5 355
Ram adjustment range
(mm)		 20 20 31 31
Bolster vertical adjustment range
(mm)		 55 Fixed Fixed Fixed
Bolster size
(mm)		 240×115 420×267 590×320 800×450
Bending slide Bending force
(kN)		 11(20) 30 40(80) 50(100)
Bending stroke
(Max.mm)		 45 50 70(60) 110(90)
Number of sets installable
(Max.sets)		 9 11 11 11
Rear slide unit Bending force
(kN)		 20 30 40 50
Bending stroke (standard)
(mm)		 50 60 80 125
Number of sets installable 3 3 3 3
Main body Power consumption
(V)		 200 200 200 200
Power capacity
(kVA)		 Approximately 7 Approximately 14 Approximately 14 Approximately 22
Power equipment
(kW)		 3.7/4P 7.5/4P 7.5/4P 11/4P
Compressed air supply
(MPa)		 0.5 0.5 0.5 0.5
Machine dimensions
(mm)		 1510L × 910W × 1780H 2000L × 875W × 1950H 2655L × 1100W × 2155H 3345L × 1520W × 2350H
Machine weight
(kg)		 1400 2700 5000 11000
Paint color Munsell N7 Munsell N7 Munsell N7 Munsell N7
Speed (min-1) 35〜350 45〜260 35〜170 15〜100

Specifications are subject to change without notice.
